Flow rate: Nominal 200 Litres/min (44.4 gallons/min) at
1500rpm
Self-priming from dry up to 2.4m (7.8ft)
2 Versions available. 6400-0004 is a universal application and 64001051 is a
replacement for Catarpillar Engines.

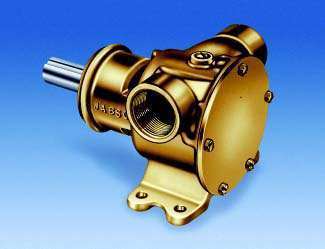

Constructed from marine quality bronze and stainless steel for ruggedness and
reliability.
- Easy to service and maintain.
- Inexpensive to buy and operate.
- Will tolerate abrasive wear (this may affect performance - seek advice
from your distributer).
- Handles hard and soft solids without clogging.
- Can pump in either direction.
- Will not airlock. .
Wearplate: Replaceable
Shaft Seal: Carbon-Ceramic Face Type
Bearing: Pre-lubricated Double Row Ball
Ports: 1-1/4" (32mm) NPT
Internal
Weight: 10-1/2 lb (4.8 kg) Approx.
62 gpm (235 lpm) at 10ft
(3m) total head at 1750 rpm.
Self-priming to 10ft(3m) vertical lift.
Mechanical face seal.
Double-row ball bearing.
