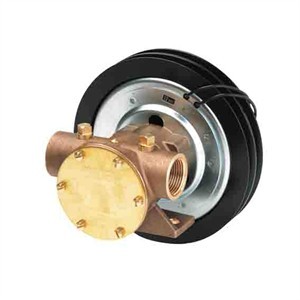

Electrically activated clutch pump offers all the beneifts of flexible
impeller pumps with substantial flow rate and horizontally oriented ports. Good
for pumping bilges, washdowns, circulating water in bait tanks or as a utility
dockside pump.
Flow rate: Nominal 23 USgallons/min (88 Litres/min) at
1750rpm
Self-priming from dry up to 2.4m (7.8ft)
- Constructed from marine quality bronze and stainless steel for ruggedness
and reliability.
- Easy to service and maintain.
- Inexpensive to buy and operate.
- Will tolerate abrasive wear (this may affect performance - seek advice
from your distributer).
- Handles hard and soft solids without clogging.
- Can pump in either direction.
- Will not airlock.
| Body Materials |
Bronze |
| Impeller |
Nitrile |
| Wearplate |
Replaceable |
| Shaft Material |
Stainless steel |
| Seal |
Carbon/ceramic mechanical type |
| Bearings |
Twin row, ball type |
| Port Type |
1" NPT |
| Clutch Type |
Electro-magnetic 12 VDC |
| Pulley |
178mm (7") 'A' or 'B' section |
| Weight |
15 (lb)
6.8 (kg) |
