CEN 1500018 Centek Vernalift Side In/Top Out Wet Exh Mufflers

Hover over image to zoom

Centek Vernalift Side In/Top Out Wet Exh Mufflers

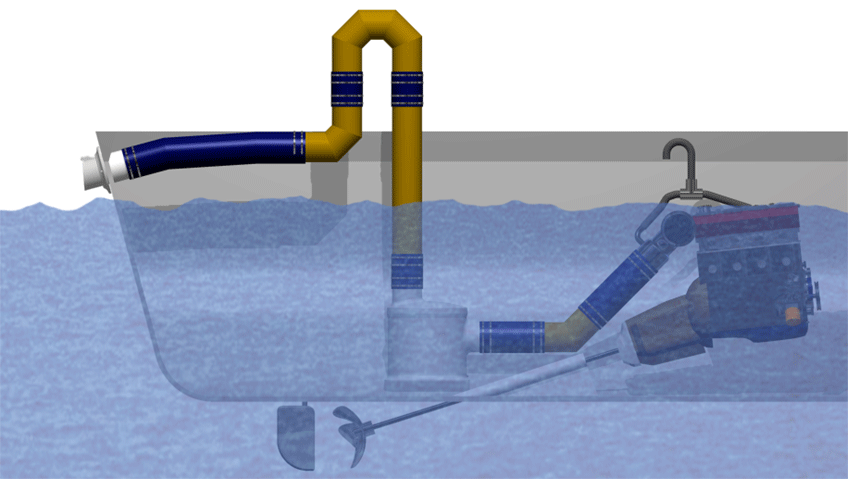

The Vernalift muffler was designed originally for small auxiliary propulsion engines installed near or below the water line in sailboats. In the early 70?s the quieting capabilities of lift mufflers were recognized. The Vernalift family expanded to include new and larger engines.

Application: Inboards, Sailboats & Generators
Fuel type: Gas/Diesel
Waterline: Above or Below
Sound rating: Better

Please click on view options button to view a specification chart of available sizes.

Choose Your Item - Choose From The Options Below

	1 1/2" Ports x 6 9/64" High: #CEN 1500018($132.72)
	1 5/8" Ports x 7 59/64" High: #CEN 1500020($148.66)
	2" Ports x 6 9/64" High: #CEN 1500025($139.85)
	2" Ports x 7 59/64" High: #CEN 1500026($152.86)
	2" Ports x 10 5/32" High: #CEN 1500027($165.84)

Base Price: $132.72

Selected Options: $0.00

Total Price: $132.72

VERNALIFT? SIDE IN - TOP OUT
	INLET		OUTLET		I/O LENGTH		DIAMETER		INLET HGT		I/O OFFSET		HEIGHT		SQ. BASE
Part #	INCHES	MM	INCHES	MM	INCHES	MM	INCHES	MM	INCHES	MM	INCHES	MM	INCHES	MM	INCHES	MM
1500018	1.5	38	1.5	38	2.00	51	6.38	162	5.81	148	1.50	38	9.00	229	9.00	229
1500020	1.63	41	1.63	41	2.50	64	8.36	212	4.68	119	2.00	51	8.00	203	9.00	229
1500125	1.75	44	1.50	38	2.50	64	8.36	212	4.68	119	2.00	51	8.00	203	9.00	229
1500026	2.00	51	2.00	51	2.50	64	8.36	212	4.68	119	2.00	51	8.00	203	9.00	229
1500027	2.00	51	2.00	51	2.50	64	10.04	255	6.50	165	2.00	51	10.16	258	10.50	267
