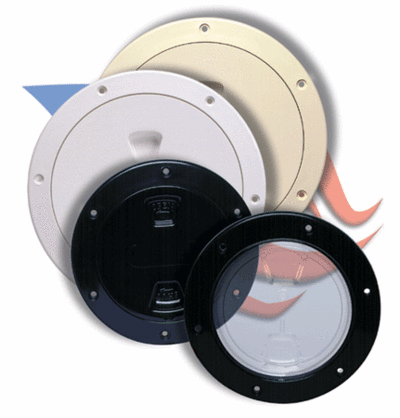

Beckson Screw Out Deck Plates
Beckson Deck Plates are considered the industry standard for poly deckplates. Available in a variety of configurations and sizes. Review the chart for specs on each option.
| Model # | Color | Center Texture | OD" | ID" | Cutout Size |
| DP40B | Black | Smooth | 6 1/8" | 4" | 4 1/2" |
| DP40W | White | Smooth | 6 1/8" | 4" | 4 1/2" |
| DP40WC | White-Clear Insert | Clear | 6 1/8" | 4" | 4 1/2" |
| DP42B | Black | Non-Skid | 6 1/8" | 4" | 4 1/2" |
| DP42W | White | Non-Skid | 6 1/8" | 4" | 4 1/2" |
| DP60B | Black | Smooth | 8 1/8" | 6" | 6 1/2" |
| DP60W | White | Smooth | 8 1/8" | 6" | 6 1/2" |
| DP60WC | White-Clear Insert | Clear | 8 1/8" | 6" | 6 1/2" |
| DP62W | White | Non-Skid | 8 1/8" | 6" | 6 1/2" |
|
DP64N |
Neutral | Diamond | 8 1/8" | 6" | 6 1/2" |
| DP64W | White | Diamond | 8 1/8" | 6" | 6 1/2" |
| DP82B | Black | Non-Skid | 10" | 7 5/8" | 8 1/2" |
| DP82W | White | Non-Skid | 10" | 7 5/8" | 8 1/2" |
| DP80W | White | Smooth | 10" | 7 5/8" | 8 1/2" |
| DP80WC | White-Clear Insert | Clear | 10" | 7 5/8" | 8 1/2" |
| DP84N | Neutral | Diamond | 10" | 7 5/8" | 8 1/2" |
| DP84W | White | Diamond | 10" | 7 5/8" | 8 1/2" |
The Beckson Screw-Out Plate was designed to provide access without the use of tools, with a single start, non-jamming (no cross-thread), extra strong, self-cleaning buttress thread. They incorporate a self-aligning center and an innovative gasket to assure a watertight seal. A patented back-up sealing wall leaves the plate waterproof, even if the gasket is removed. A screw-out plate should be used in compartments where a change in air pressure due to temperature or oil canning can occur. Deck plates also are used for access, inspection,and clean out for tanks and compartments, or just as a general access for shut-off valves or back- fastenings. Our clear center plates permit observation of controls or gauges and visual inspection without the necessity of removing the plate.
