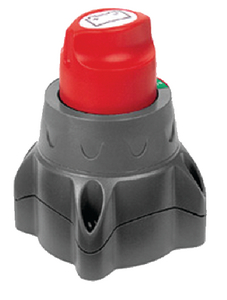

Easily removable threaded ring allows for panel thicknesses up to 19mm (3/4?). It uses the same features as the 701 with the removable key 45? past the off position, labelled handle and a removable back cover covering exposed terminals to meet ABYC specications. The switch can also be surface mounted offering a unique style compared to other switches available on the market. The 700 Easyfit can easily be retrotted in place of most European post and lever type switches.
Regular Price:
$31.74 / Each
Our Price:
$25.52 / Each
Continuous Rating: 275 Amps DC
Intermittent Rating: 455 Amps DC
Cranking Rating: 1250 Amps DC
Voltage Rating: 48 Volts DC
Operation: On/Off
Mounting: Recessed or Surface
Termination Stud Size: 2 x 10mm (3/8 ?)
Tin plated copper studs and nuts
Ignition protected
