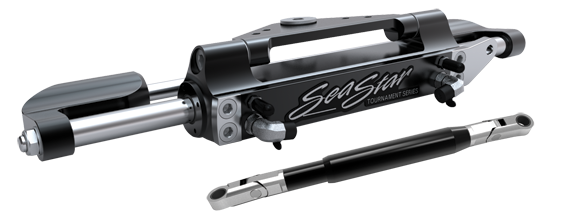

Teleflex Seastar Tournament Series Cylinders

treme heavy duty cylinders and tiebars designed for primarily high performance multiple engine applications. Also available for single engine applications.

Available in 3 models:

HC6845 is the standard model, suitable for both single and multiple engine applications.

HC6845S is the standard model, however for single engines only and comes with a hardware kit for single engine mounting.

HC6850 is a front mount cylinder with 1.5 LTD ST

For a complete application guide please click on view items where more information is available.

CONFIGURATION	CYLINDER		HARDWARE KIT		TIE BAR				NOTES
	PART NO.	QTY.	PART NO.	QTY.	PART NO.	QTY.	CENTER TO CENTER DISTANCE (IN.)	CENTER TO CENTER DISTANCE (MM.)
Single Engine	HC6845S	1	Included			N/A	N/A	N/A	See Note 1
Twin Engine � Single Cylinder (STBD)	HC6845	1	HA6802	1	HO6821	1	25.0 � 25.6	635 � 650	See notes 1,3,4,5 HA6802 Drive Bracket Availability � TBD
					HO6822		25.7 � 30.6	653 � 777
					HO6823		30.7 � 39.0	780 � 991
Twin Engine � Dual Cylinder	HC6845	2	HA6804	1	HO6820	1	25.0 � 26.5	635 � 673	See notes 1,3,4,5
					HO6821		26.6 � 29.3	676 � 744
					HO6822		29.4 � 34.2	747 � 869
					HO6823		34.3 � 43.0	871 � 1092
Triple Engine � Dual Cylinder	HC6845	2	HA6806	1	HO6822	2	25.0 � 27.9	635 � 709	Maximum drop: = 3 inches (76mm) See notes 1 thru 5
					HO6823		28.0 � 36.0	711 � 914
Quad Engine � Dual Cylinder	HC6845	2	HA6811	1	CONSULT TELEFLEX TECHNICAL SERVICE				See notes 1,3,4,5
Quintuplet Engine (Plus)	CONSULT TELEFLEX TECHNICAL SERVICE								See notes 1,3,4,5

Important Information:
Each configuration requires a hardware kit and tie bar kit(s), with the exception of the single engine configuration.

GENERAL INSTALLATION NOTES FOR CHART ABOVE

1) Installation may vary according to the following factors: engine mounting height, transom thickness, use of transom savers, tiller bolt hole location, engine tilt range, and engine size.

2) For center engine drops greater than 3 inches (76mm), please consult Teleflex Technical Service.

3) Tie bar length may vary depending on toe in/toe out setup. To allow for toe, add or subtract from your nominal engine center to center distance.

4) Based on recommended engine manufacturer minimum center to center distances. Deviating from these recommendations may require stroke limiting cylinders and/or engine tilt limiting, please consult Teleflex Technical Service.

5) Cylinder�s must be plumbed in parallel only, no series connections. Only exception is if cylinders are utilizing a liquid tie bar.
